Sioux WH Series Hot Water Heaters
Sioux has leveraged their extensive expertise in industrial water heaters to develop the WH Series. These cutting-edge water heaters have been designed with advanced features for efficient water heating while offering convenient control, monitoring, and maintenance.

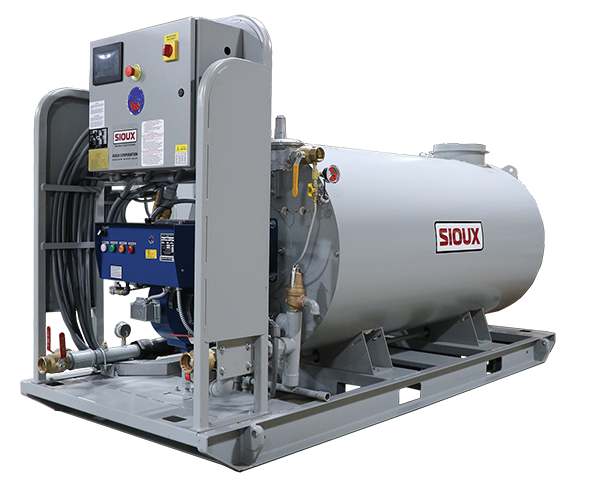

The WH Series water heaters by Sioux are designed as horizontal, skid-mounted units with three-pass coils. They are capable of providing a continuous supply of hot water within minutes of being started up. The WH Series is available in four sizes, offering heat outputs of 1.0, 1.7, 3.0, or 5.0 million BTU/Hr. To create a comprehensive water heating system, Sioux WH series water heaters can be combined with any of our various capacity water tank packages to suit your production needs.
Features:
- PLC with HMI touchscreen.
- Reach 170°F tank temperature without burner cycling.
- The horizontal design provides easy access to the burner.
- VFD for precise outlet water temperature control. (Standard on WH1.7, WH3.0, & WH5.0 models)
- Modulating burner option reaches the highest temperatures faster. (Standard on WH3.0 & WH5.0 models)
- Monitor and operate the water heater from a remote location. (Requires an IP address and connection to the local network)

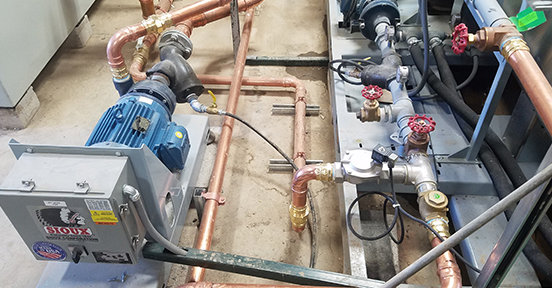

- Circulation pump and motor to circulate water between the heater and a tank.
- Set the operation schedule for the water heater to automatically startup and shut down to achieve desired tank temperature.
- Operate a connected water tank package from the same control system as the water heater.
- Maintenance alerts and diagnostic tools such as descaling alerts and alarm indicators.
- Emergency stop switch and machine disconnect switch for added safety.
- Safety controls include inner and outer coil flow switches and high-temperature limits, exhaust temperature limit, ASME-rated pressure relief valve, inlet water y-strainer with pressure gauges, and adjustable tank temperature control.
